Vigo 40 x 40cm range of sheet filters are robust beverage filters, suitable for filtering wine, cider, beer and other beverages.

• Suitable for batches of 2,000 litres of product or more.
• Available with 20, 30 or 40 plates (40x40cm), depending on the model
• Stainless steel chassis, end plates, inlet piping, outlet piping and drip tray
• Polypropylene plates as standard

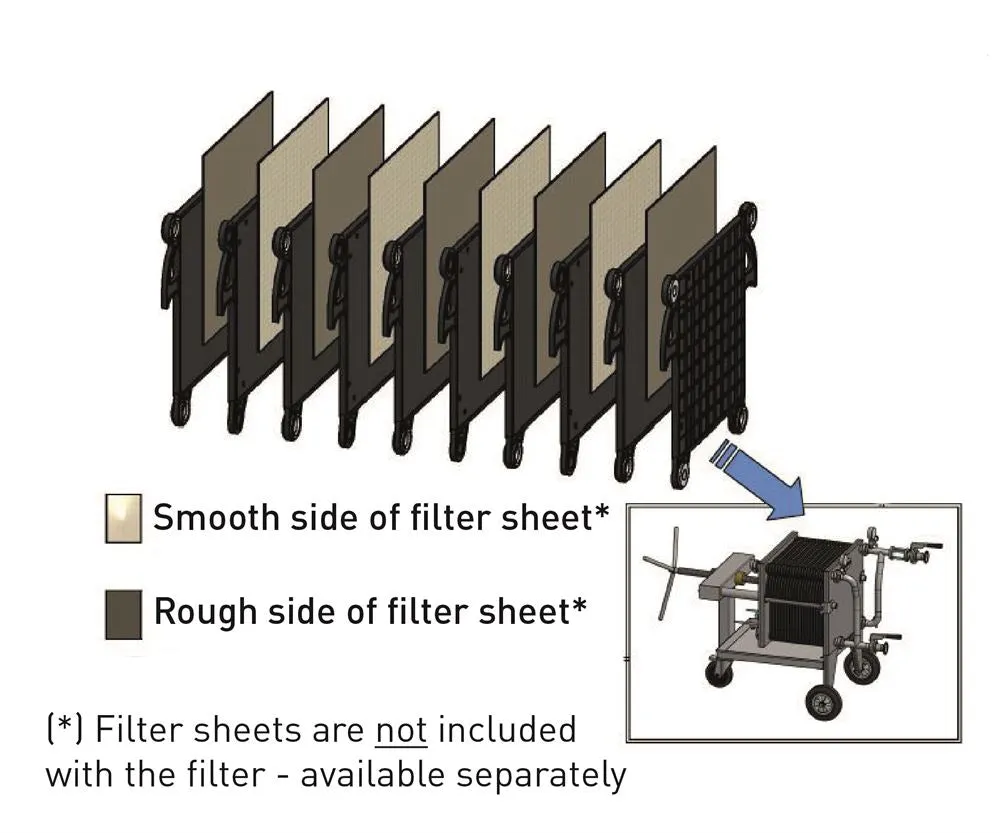

• Accepts 40 x 40 cm Filter Sheets - not included, available separately - see below
• Stainless steel valves (threads to your specification)
• Outlet sight glass, sample taps and pressure gauges
• Capacity about 50 -100 lit/hr per sheet
• Mounted on large wheels for easy movement
• Thread to your specification

Optional:

• Optional pump (available separately) can be mounted on chassis - please call us on 01404 892 100 to discuss this
• Optional Double Filtration Kit(part no 95183 - available separately) to permit simultaneous filtration with two grades of filter sheet
• Extra plates (see max. no. of plates in Specification tab) - please call to discuss this

NB Filter sheets not included (available separately) - please see Beco 40 x 40cm Filter Sheets (part code 95910, etc.)

Please note, there are also 50 & 60 plate models of this filter available - please call us on 01404 892100 if you would like a price for these models.

Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.
